Save the Batteries! One of our top complaints with the otherwise spiffy PalmPilot is a small design error that drains the PalmPilot's batteries anytime the PalmPilot is sitting in the cradle. The PalmPilot cradle, sitting there on your desktop, is the obvious place to set your pilot, and in fact many advertisements feature the PalmPilot shown in its cradle. But in practice, you can't do that, lest you drain your batteries.

In fact, we found this so unbelievable that we wrote 3COM tech support and asked them about it, and got the following response:

"Leaving the unit in the cradle keeps the serial port connection open. This could use the battery life quicker than normal.

C.J. A
USRobotics. From The Leader In Networking, 3COM."

When we mentioned it in a forum, John Haggis saw it and thought, "Well obviously that's wrong" and decided to find out what was really going on. He tracked down the PalmPilot drain, came up with a fix and created the "Fix the PalmPilot Cradle DRAIN!" page.

Well this was great! One of our top complaints, cured! Everything was dropped in a mad rush to make his cable. But as we were soldering, we realized that the wiring in the pictures was wrong. (John has since updated the pictures with correct wiring.) After letting John know about it, we thought "well, obviously he tested this and it works" and so we looked closer and realized the offending signal line wasn't connected at all!

Drainfix News
3 years after we created this site, Palm acknowledged the battery drain problem and identified the affected models here. Unfortunately that link is no longer active and palmOne appears to have removed the article from their knowledebase.

If you have a Pilot, PalmPilot, Palm III, Palm IIIx, Palm IIIe, Palm IIIxe, Palm VII, or Palm VIIx then you are affected. Palm III-alikes like the TRG Pro and Symbol Technologies units are also likely to be affected. USB-based units like the Visor are not affected. Frankly, the vast expansion of the Palm marketplace has overwhelemed our ability to test all the possible units.

Dan Royea verified that the Palm V family devices drain also, but they're also charging at the same time. We don't like it, but since they charge faster than they drain, our recommendation has been to not make any modification to Palm V-style units.



Current releases of Mocha W32 PPP and Mocha W32 Keyboard are NOT compatible with the cradle drain fix. There doesn't seem to be any hardware reason for this incompatibility, but until an update is released, users of these products should hold off making the drain fix.


A lot of people check here to learn the drain status of their new units. Besides those listed above, there are the other manufacturers, whose units use Palm hardware. We'd like to have complete coverage, but there are simply too many PalmOS devices to buy now. We are therefore asking for review units, preferably coupled with official statements from device manufacturers.

Our Fix
The PalmPilot's batteries drain because the DSR line on the PalmPilot is never truly 'disconnected' when the serial port is closed. Rather than rewrite everything, we direct you to John's page for more technical details, and Palm's description of the serial port (note the details on pin 1). In our document, we refer to it as the DSR line (as seen from the PC side,) as opposed to the GPO line/PalmPilot DTR.

Our theory was John's original miswired mod worked because the DSR line simply isn't used by the PalmPilot<->PC apps, and found after researching that extensively that it's true. Thus the only modification needed is to disconnect the draining signal line. The mod was tested and worked great on the systems and software listed on the right.

This drainfix modification has proven compatible with all systems.

UPDATE: It's been several years, and at this point tens of thousands of people have visited this page, and judging from the email most of them make the mod, and there have been no problems. The DSR line definitely isn't used to hotsync!

The list of platforms at the right is only a small subset of the thousands of systems this mod is working on.

Platforms that were tested with this modification:
Operating Systems

Win 98

Win 95
All versions

Win NT 4.0

Win 2000

MacOS

Ultrix 4.5

Linux
Red Hat 5.0

Hardware

486/120
Sis

Pentium/200
HX

P-II/233
LX

P-II/300
LX

AMD K6/200
TX chipset

Mac 7500
PowerPC

DECstation 3100

Com ports

COM1
COM2
COM3

Mac GeoPort

What To Do

DISCLAIMER: Even though this is really simple mod, something might go awry. Proceed at your own risk. Conklin Systems is not responsible for any damages that occur as a result of attempting this modification. For best results, read all the instructions before starting

This simple change will take less than a couple of minutes. The easiest place to disconnect the DSR line is on the cradle itself. If you pick up your cradle and flip it over, you'll see that it's a simple affair with two halves that snap together.
If you have an original Pilot/PalmPilot...

PalmPilot cradles are really easy to open. Holding the cradle facing you, put your finger on the front piece of plastic in the bottom of the curve and gently press down. Click! Some units will just slide apart.

Opening the cradle

Some cradles are stiffer than others, and may not snap apart without a pound or so of pressure. If the cradle doesn't come apart easily, Gently use a small screwdriver to lift the two locking tabs up slightly, and that allows you pull the two pieces apart. turn it over and lift up on the tabs shown in the green circles.

Locating the tabs

If you have a Palm III-style cradle...

The Palm III cradle has a single screw holding the two halves together. It's pretty small, so try and find a small screwdriver, like a jewler's screwdriver.

The Palm III cradle has a screw

Once the screw's been removed, the front of the cradle slides up.

Slide the front up and off

Inside the cradle

Note the hot-sync button in this picture (seen from the backside, turned 180 degrees) has a notch in it. That notch slides over a plastic guide, and it has to be aligned with that guide before you snap it back together. (We mention it because it's actually rotated a little here in the pic.)

The Palm III cradle shown here is marked "Rev 4." Some people described their Palm III cradle as being more like the PalmPilot cradle on the left. In either case, the goal is to disconnect the wire that connects to the cradle's pin marked 2 below.

Inside the Palm III cradle

The wire we want to disconnect connects to the circuit board at point 1. There's a picture of the backside of this farther down.

Closeup of the modification In this PalmPilot cradle closeup you can see what has been changed. The leftmost wire, (Marked "B", yellow in this picture,) is the DSR line, and has been disconnected. Don't rely on it being yellow; what's important is it is the leftmost wire connecting to "A"

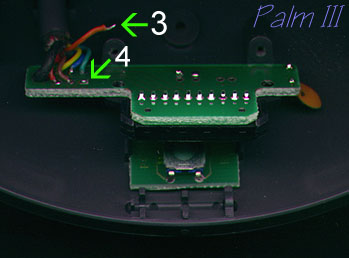

On this Palm III, the wiring is changed, but the goal is the same - disconnect the leftmost cradle pin 2. In the close up here, we've unscrewed the board and flipped it forward so you can clearly see where the wires attach. The wire 3, orange in this case, was desoldered from the pad marked 4. On front of the circuit board this pad was marked "E1."

We don't recommend you unscrew the circuit board as we have here - this is only for illustration purposes. The screws hold on by screwing into the plastic base and it's easy to strip the plastic when you screw it back in. Instead...

Closeup of the Palm III modification

The easiest thing to do would be to cut it off close to the board with cutters. There's enough extra wire to reattach it later should you ever want to. In the pictures, it's actually been desoldered during the research process. Once you've got it disconnected, give it a twist so it stays away from the board and doesn't accidentally make contact with any other wires.

We actually recommend cutting it off close to the board. The soldering is a little tricky (it's smaller than it looks) if you don't have solid soldering skills. If you do, be sure to use a low-wattage soldering iron (25-30 watts) and only heat it long enough to pull the wire out.

UPDATE: Some cradles have a glob of caulk/silicone adhesive covering the wires, which can make it a little harder to see the wires. The wire is still the leftmost wire, and the modification is the same, but you'll want to be a little more careful trying to clear away the glue so as to not affect the other wires.

And that's it! Just snap it back together, gently put the screw back in if it's a Palm III, and now you can now safely leave your PalmPilot resting in the cradle like this, neat and clean. Besides Hotsync testing, we also tested with Metrowerks remote debugging mode and Haus of Maus's Mouse-simulator program with no problems. The mod also was tested with NT RAS server using the PalmPilot's PPP stack. And basically, that's every program we can think of that makes use of the cradle. From our email levels, we guesstimate there are several thousand modified cradles out there in use.

If you use your cradle with an external modem, as opposed to the available serial cable or the clip-on modem, then this mod may not work for you. An external modem may require DSR to be high before it will work. If this is the case for your modem, John's mod might take care of it for you. We haven't actually tested this to see if it is a problem because to be honest, using the cradle with your external modem seems an unlikely combination.

A note about your warranty
In theory, this modification could void your PalmPilot cradle warranty. In practice, no one will ever know about it - your PalmPilot is unchanged, and by properly resoldering this one line, you will have restored your cradle to factory condition. That's all they did to build it in the first place!

Best of luck and enjoy your new PalmPilot "throne." We sure are! Finally, everything is in its place.
